Diamond Audio
Diamond Audio MSHD14 "Perfect Fit" Radio for Harley-Davidson w/MSHXM694LK
Diamond Audio MSHD14 "Perfect Fit" Radio for Harley-Davidson w/MSHXM694LK
Regular price
$1,995.95 USD
Regular price
$0.00 USD
Sale price
$1,995.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MSHD14
• 7" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Maestro built in for advanced vehicle data Boom Audio 2 amplifier turn on
• 3 sets of 5 volts preamp outputs
• 13 Band Parametric EQ
• SiriusXM Satellite Radio Ready

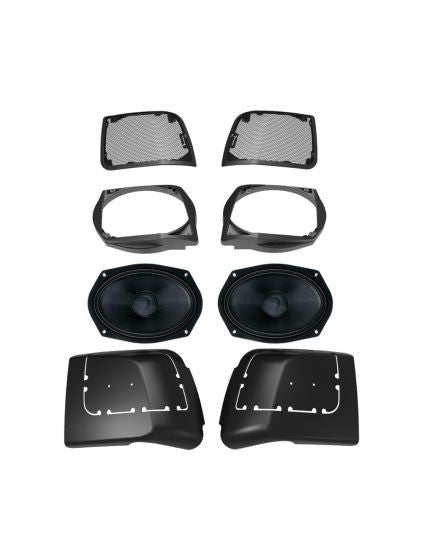

MSHXM694LK HARLEY LID KIT
• 150W RMS / 300W Peak Max Power Handling
• 2-Way / 4-Ohm
• IPx65 marine grade compliant
• Integrated Digital RGB LED lighting
• Cut-Out Diameter: 8.64" x 6.0"
• 2-Way / 4-Ohm
• IPx65 marine grade compliant
• Integrated Digital RGB LED lighting
• Cut-Out Diameter: 8.64" x 6.0"
Product Details

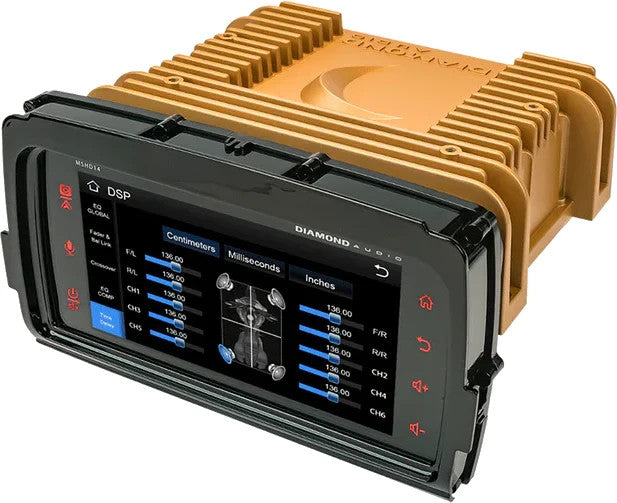

- Custom Fit Digital Multimedia Receiver
- 7" Capacitive Touchscreen Display
- Power Output:
- Peak: 50 watts x 4 channel
- RMS: 28 watts x 4 channel
- Built in WiFi for wireless Apple CarPlay and Android Auto
- Utilizes factory USB for phone charging and music playback
- Maestro built in for advanced vehicle data Boom Audio 2 amplifier turn on
- Retains handlebar controls, reconfigurable though programming
- Can bus integration and vehicle data allows for selectable on-screen data such as RPM, Voltage, Temp, Throttle Position
- Glove friendly, ultra-bright 7" 1000 nit, sunlight viewable touch screen display
- 6 independent EQ's for the ultimate sound customization (1 global, 5 for setup)
- 10ch DSP features time delay, HP/LP/BP crossovers with adjustable 6,12,18,24db slopes independent channels can be linked together or separated from fader control
- 10 channel, clip free independent outputs
- Built-in HD Radio Tuner
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
- MFR #: MSHD14
Smartphone Features
- Wireless Apple CarPlay and Android Auto compatible
- Display and control music, navigation, and other apps with iPhone and Android
Playback and Audio Features
- MP3 | WMA Audio Playback
- AVI | MP4 | MPG | MOV and WMV Video Playback
- AM/FM tuner
- MP3 ID3 Tag Display (Title/Artist/Album)
- 13 Band Parametric EQ
Expandability Options
- Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
- 6 programmable auxiliary triggers for controlling lighting, kickstands and accessories via touchscreen, timers/triggers or handlebar controls
Audio/Video Inputs and Outputs
- 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
- Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
- Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
- Backup Camera Input: Used for universal rear view cameras with an RCA composite input
Bluetooth Features
